OVERVIEW

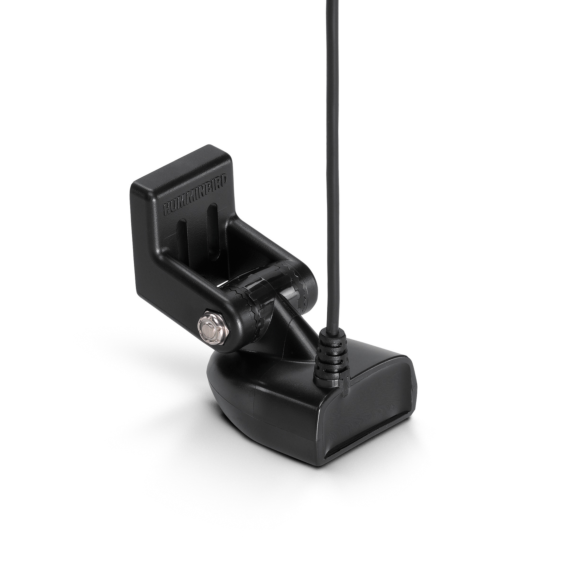

Single/DualBeam, 20/60 Degree, 200/83 kHz, with built-in temperature. More secure, especially at high force of waves. Improved running angle and an optional lock down screw to override the kick up.
FEATURES
- Compatible with: All Matrix except Matrix 47 3D, All PiranhaMAX except 180, 165, 175, 176i, 195c, 196ci, 197c, 197c DI, PiranhaMAX 4, PiranhaMAX 4 DI, All 100 and 300 Series except DI, All 500 Series except DI models, All 600 Series except DI models, All 700 Series except DI models, All 800 Series except DI models, All 900 Series except DI, 3D models, All 1100 Series except DI and All HELIX Series except DI models
- Cable Length: 20 Feet
SPECS
Mount Type |
Transom |
Sonar Type |
2D |
Current Models |
HELIX 10, HELIX 12, HELIX 5, HELIX 7, HELIX 9, PiranhaMAX |
Discontinued Series |
100 Series, 1100 Series, 300 Series, 500 Series, 600 Series, 700 Series, 800 Series, 900 Series, Matrix |
UPC |
0082324507489 |
