Wiper Motor, 1000 Series, 12V, 1.5" Shaft, 65 Degree (BULK)
Marinco
SKU
M36161

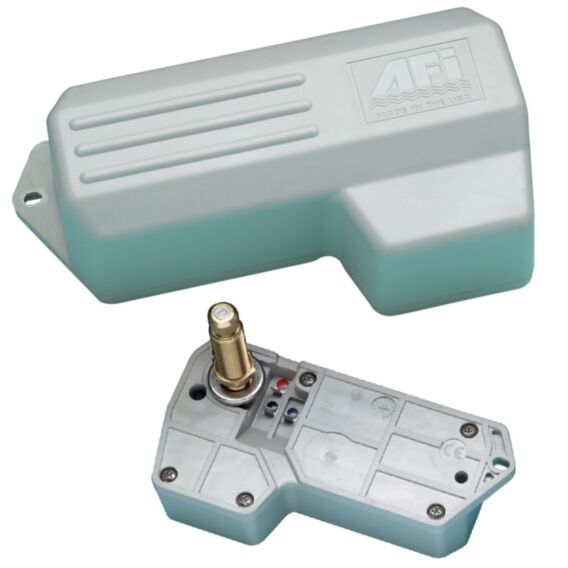

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degrees or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweeping set of 110 degrees.
£170.06
RRP
Ex. VAT
- Factory pre-set sweep of 80 degrees or 110 degrees adjustable to 50 degrees, 65 degrees, 80 degrees or 110 degree
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with the anti-rotation driveshaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self-parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Measures approximately 6.625" L x 3.375"W x 2" D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps
