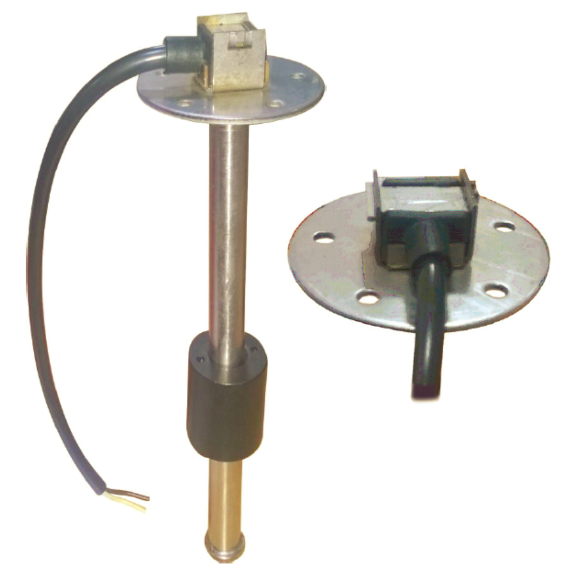

Reed Switch Sender

Introduction

Veethree’s reed switch sender is compatible with a variety of fuel types, including:
• Gasoline
• Diesel
The reed switch sender unit provides liquid level information via a series of reed switches
positioned inside the sealed level tube, afloat with built in magnets then triggers the reed relays
generating a resistance with an ohm value that increases or decreases. The float is the only
moving part of the sensor, thereby minimizing potential mechanical failures and maximizing
flexibility of installation even in tanks with baffles.

Key Features

• Reliable Solid State Electronics
• Compatible with a range of fuel types and fluids

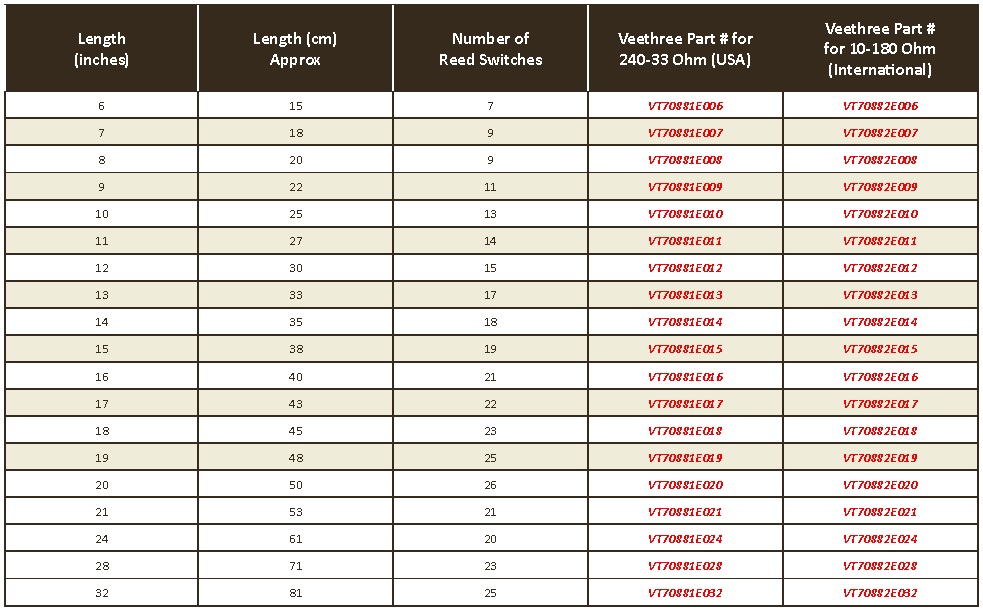

• Factory preset lengths available
• Suitable for use with both 12V and 24V gauges
