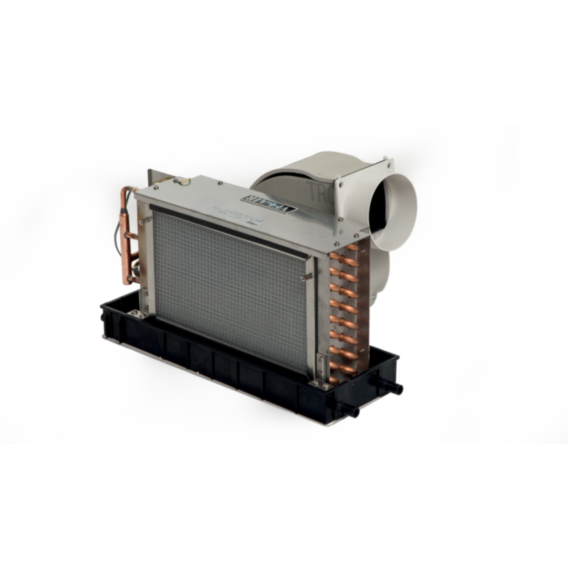

V12 Fancoil Velair 12000 BTU/h
• Illuminated touch screen display with embedded temperature sensor and WI-FI connectivity.
• Constant flow fan with 3 adjustable speeds.
• Summer and winter operation mode.
• Chiller call ready
• Predisposition for the addition of solenoid valve
• Possibility to control multiple machines from a single display
|
Cooling capacity BTU/h |
5000 (V5) - 12000 (V12) - 20000 (V20) |
|
Fan speeds |
3 |
|
Chiller call ready |
YES |
|
Predisposition for the addition of solenoid valve |
YES |
|
Summer and winter operation mode |
YES |
|
Illuminated touchscreen display |
YES |
|
Possibility to control multiple machines from a single display |
YES |
|
|
V12 |
|
Cooling capacity (BTU/h) |
12000 |
|
Power supply |
1 PH / 230 v / 50 Hz |
|
Fan absorption (W) |
170 |
|
Fan speeds |
3 |
|
Air flow (m3/h) |
500 |
|
Air outlet diameter |
1x125 |
|
Dimensions LxHxP mm (") |
540x300x315 (21.3x11.8x12.4) |
|
Weight kg (lbs) |
9,0 (19.8) |
