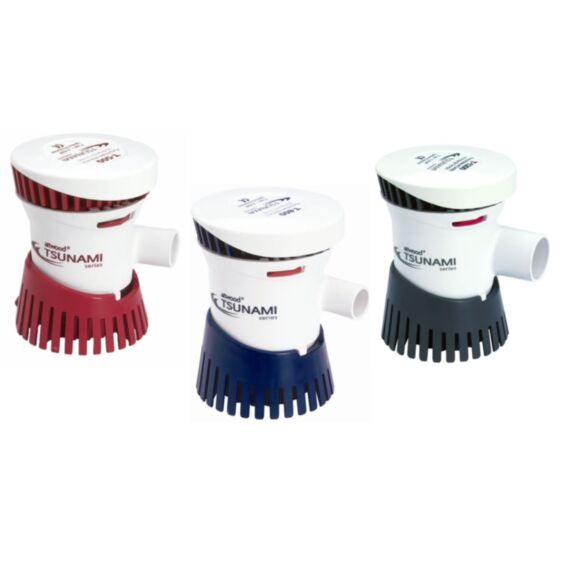

Tsunami cartridge bilge pumps deliver powerful water output in 500 gph, 800 gph and 1200 gph capacities. They circulate water around the pump motor housing, helping to absorb the heat given off by the operating motor. The patented shaft seal centres directly on the motor shaft, preventing leaks caused by misalignment. The moulded two-wire seal is permanently fused to the insulation to prevent a leak path. Wiring is caulked and tinned to eliminate wicking, prevent water damage and resist corrosion.
Secured directly to the hull - no bracket required. All pump housings are made of rugged glass and mineral-filled polymer that withstands hull pounding and resists chemicals. Not just fuel, oil and detergents that accumulate in the bilge, but also the plasticizers used in most hoses. These plasticizers can break down the chemical composition of the materials used in other pumps.
3-Year Warranty
Dimensions
Model No |
A |
B |
C |
D (Hose Size) |
E |
Wire/Connector |
500 GPH |
2-3/4” |
2-7/8” |
3-5/8” |
3/4” O.D. |
3-1/8” |
29” Wire |
800 GPH |
3-1/8” |
3-1/4” |
4-3/8” |
3/4” O.D. |
3-1/22 |
29” Wire |
1200 GPH |
3-1/8” |
3-1/4” |
4-3/8” |
1-1/8” O.D. |
3-3/4” |
29” Wire |
Specifications
GPH Output @ Design Voltage 13.6 VDC |
|||||||
Model No |
Rated Voltage |
Amp Draw |
0 ft |
3.3 ft |
6.7 ft |
Max Head |
Fuse Size |
500 GPH |
12 |
1.8 |
500 |
400 |
250 |
9 ft |
3-amp |
800 GPH |
12 |
3 |
800 |
660 |
510 |
13 ft |
4-amp |
800 GPH |
24 |
1.3 |
800 |
660 |
510 |
13 ft |
2-amp |
1200 GPH |
12 |
3.5 |
1200 |
900 |
700 |
11 ft |
5-amp |
GPH Output @ Nominal Voltage 12.0 VDC |
|||||||
Model No |
Rated Voltage |
Amp Draw |
0 ft |
3.3 ft |
6.7 ft |
Max Head |
Fuse Size |
500 GPH |
12 |
1.4 |
450 |
320 |
160 |
8 ft |
3-amp |
800 GPH |
12 |
2.5 |
760 |
550 |
400 |
11 ft |
4-amp |
800 GPH |
24 |
1.1 |
760 |
550 |
400 |
11 ft |
2-amp |
1200 GPH |
12 |
3 |
1100 |
760 |
480 |
9 ft |
5-amp |
