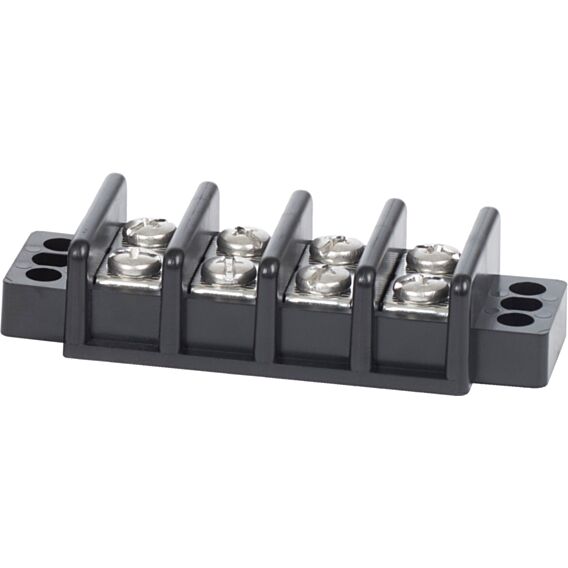

Terminal Block 30A - 4 Circuit
Blue Sea Systems
SKU
BSS2504
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
£6.69
RRP
Ex. VAT
| Specifications | |
|---|---|
| Circuits | 4 |
| Length | 3.25in (82.55 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating* | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
| Weight | 0.17lb (0.08 kg) |
*The maximum current a switch is designed to conduct for an indefinite period.
