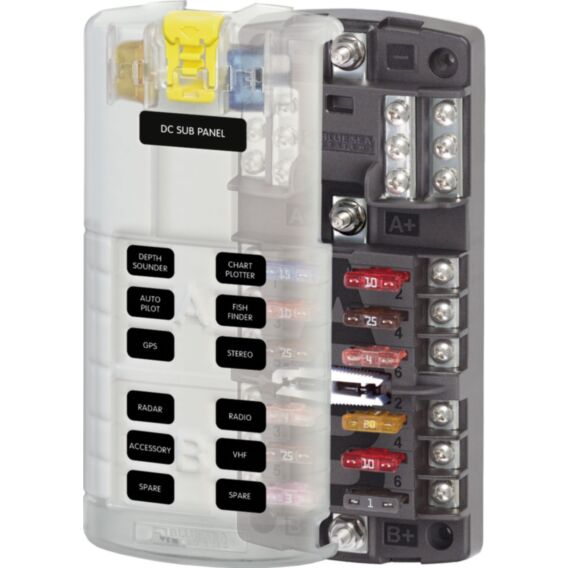

ST Blade Split Bus Fuse Block
Blue Sea Systems
SKU
BSS5032
Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
£105.70
RRP
Ex. VAT
| Specifications | |
|---|---|
| Circuits | 12 |
| Maximum Amperage* | 30A per circuit 100A total  |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.75lb (0.34 kg) |
*Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application
