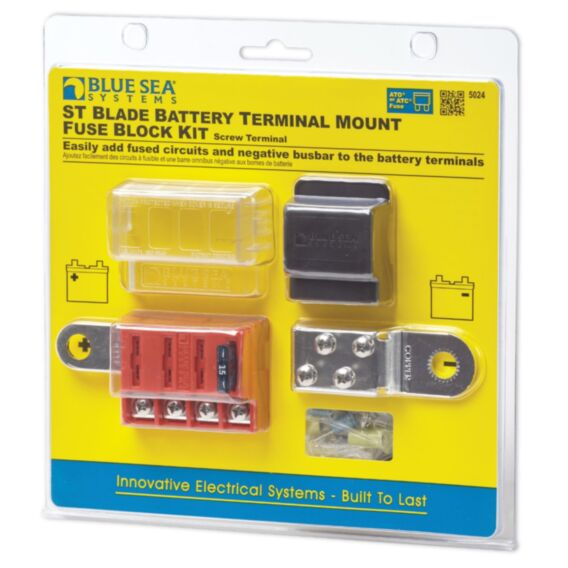

main product photo

ST Blade Battery Terminal Mount Fuse Block Kit

Blue Sea Systems
Blue Sea Systems
SKU
BSS5024

Easily add 4 fused circuits to the terminal of a battery



Provides power to new accessories in your boat or vehicle.

  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Nylon insulated ring terminals included for each screw terminal
  • Accepts small format circuit labels
  • Insulating cover meets ABYC/USCG insulation requirements
  • Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Includes a 4-circuit negative busbar
  • Includes write on labels
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Read More
£44.51
RRP Ex. VAT
Where to buy
Specifications
Circuits 4
Maximum Amperage* 100A per block
30A per circuit
Maximum Voltage 32V DC
Bus Material Tin-Plater Copper C11000
Mounting Hole 3/8" (M10) Stud
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32
Weight 0.50lb (0.23 kg)



*Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application
