SMART TABS SX

Smart Tabs

SKU

SMART TABS SX

Choose from six different Smart Tabs SX models suited for the following boat lengths:

12’ (3.66m) - 15’ (4.57m); Available in Black or White
14’ (4.27m) - 17’ (5.18m); Available in Black or White
15’ (4.57m) - 19’ (5.79m); Available in Black or White
16’ (4.88m) - 20’ (6.10m); Available in Black or White
21’ (6.40m) - 25’ (7.62m), -190HP; Available Black Only
21’ (6.40m) - 25’ (7.62m), -250HP; Available Black Only

As low as £149.99

Details

Downloads

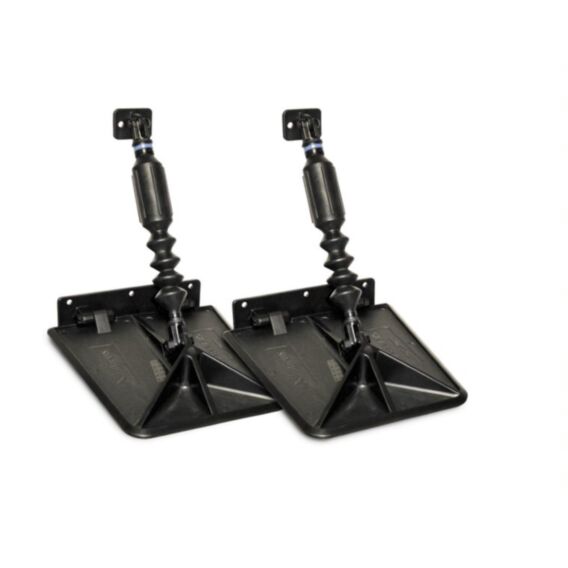

SMART TABS SX – TRIM TABS

The NEW SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16″ bit and a phillips screw driver. SMART TABS SX provide un-equaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.

The patented SMART TABS are a one of a kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.

PERFORMANCE BENEFITS

Smoother and Faster Acceleration – (Great for Skiing)
40% less Bow Rise and 35% Lower On Plane Speed – (Great for Tubing)
More Top Speed and No Porpoising or Chine Walking
Improves Handling and Smoother Ride In Any Water
Improved Fuel Economy (11% +)
Assembly & Installation In MinutesComplete assembly and mounting requires only a drill, a 3/16″ bit, and a phillips screw driver
The Integral design eliminates the need for wrenches
All components “lock” together with self locking clevis pins

NEW Larger System for 21′ to 25′ boats with up to 250 HP now available.

This larger version of our most popular SX Series SMART TABS has 32% more plaining surface to maximize the improvements in handling, ride, and efficiency for the 21′ to 25′ power boats.

The new hinge design incorporates four mounting bosses to insure durability on the larger craft. The SX10512 Series also comes with increased actuator load capacity to match the heavier engine options and larger hull designs.

APPLICATION CHART
BOAT TYPE	BOAT LENGTH	MOTOR SIZE	MOTOR TYPE	SMART TAB SX
Large RIBs, Day Cruisers, Rescue, Deck, Cuddy Cabin	21′ – 25′	175 to 220 HP	2 Stroke Outboard	SX10512-70
		150 to 190 HP	4 Stroke Outboard
		4 or 6 cyl	Inboard/Outboard
		220 to 250 HP	2 Stroke Outboard	SX10512-90
		200 to 250 HP	4 Stroke Outboard
		8 cyl	Inboard/Outboard
Small Tenders, Roll Up Inflatables, & Ribs	10′, 11′, 12′	8 to 15 HP	2 or 4 Stroke	N/A
Small Tenders, & Ribs	10′, 11′, 12′	20 to 25 HP	2 or 4 Stroke	N/A
Ribs, Flats & Bay, Bow Riders, Fish & Ski	13′, 14′, 15′	30 to 40 HP	2 Stroke	SX9510-30 / SXW9510-30
	12′, 13′, 14′	40 to 50 HP	4 Stroke	SX9510-40 / SXW9510-40
	14′, 15′, 16′	50 to 80 HP	2 Stroke	SX9510-40 / SXW9510-40
Ribs, Flats & Bay, Bow Riders, Day Cruisers, Fish & Ski, Rescue, Deck	15′, 16′, 17’+	60 to 135 HP	4 Stroke	SX9510-60 / SXW9510-60
	16′, 17′, 18’+	90 to 150 HP	2 Stroke
	18′ – 22′	150 to 240 HP	2 or 4 Stroke	SX9510-80 / SXW9510-80
Inboard/Outboard	16′, 17′, 18’+	4 or 6 cyl	Inboard/Outboard	SX9510-60 / SXW9510-60
Inboard/Outboard	18′ – 22′	8 cyl	Inboard/Outboard	SX9510-80 / SXW9510-80
Day Cruiser, Rescue, Cuddy Cabin	23′ – 30′	9’10” Max Beam	5,000 Lb. to 6,500 Lb.	N/A
Day Cruiser, Rescue, Cuddy Cabin	23′ – 30′	9’10” Max Beam	7,000 Lb. to 8,500 Lb.	N/A
