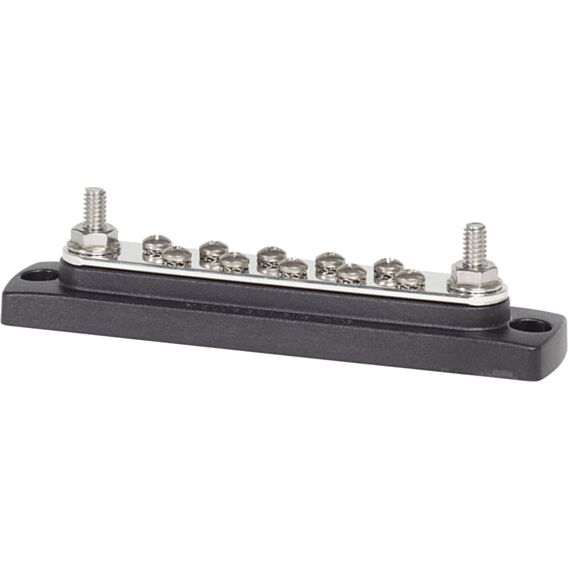

Common 150A BusBar - 10 Gang
Blue Sea Systems
SKU
Common 150A BusBar - 10 Gang
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
As low as
£15.51
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 10 |
| Number of Terminal Studs | 2 |
| Terminal Type | 1/4" Stud #8-32 Screw |
| Continuous Rating* | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 60 in-lb (6.78 Nm) |
| Weight | 0.34lb (0.15 kg) |
*The maximum current a switch is designed to conduct for an indefinite period.
