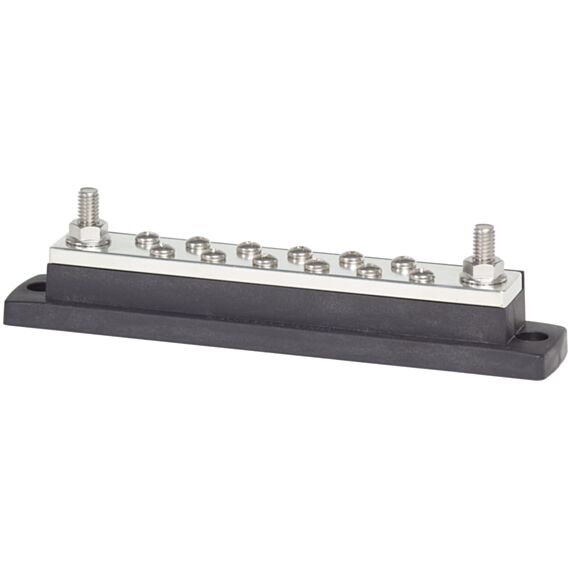

MaxiBus 250A BusBar - Two 5/16"-18 Studs and Twelve #10-24 Screws
Blue Sea Systems
SKU
MaxiBus 250A BusBar - Two 5/16"-18 Studs and Twelve
Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single screw or stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
As low as
£54.05
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 12 |
| Number of Terminal Studs | 2 |
| Terminal Type | #10-24 Screw 5/16"-18 Stud |
| Continuous Rating* | 250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Screw Torque | 23 in-lb (2.6 N·m) |
| Recommended Stud Torque | 132 in-lb (14.91 N·m) |
| Weight | 0.80lb (0.36 kg) |
*The maximum current a switch is designed to conduct for an indefinite period.
