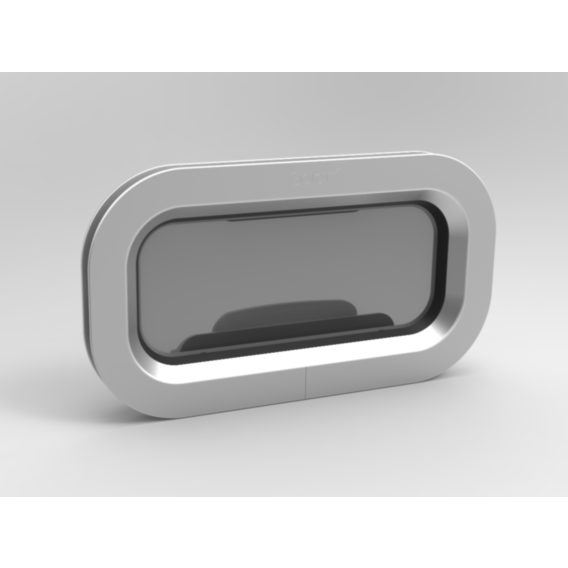

Opal Portlights
Designed to match the Opal hatches, Opal portlights range also features some unique benefits:
- Perfect water tightness with a one-piece thick frame section
- One model only accepts an extensive range of wall thickness: 5 to 33 mm
- Optimum visibility thanks to a non-obstructive position of the handle
The Opal portlight is equipped with adjustable friction hinges. The 46° angled frame ensures water draining and allows mounting on a tilted roof.
|
Size |
Weight (Kg) |
Cut-out dimensions (mm) |
Overall dimensions (mm) |
Cut-out radius (mm) |
Wall thickness (mm) |
Acrylic thickness (mm) |
|
T00 |
1.8 |
303 x 156 |
325 x 178 |
56 |
5-33 |
10 |
|
T01 |
2.0 |
347 x 171 |
369 x 193 |
56 |
5-33 |
10 |
|
T02 |
2.0 |
405 x 156 |
427 x 178 |
56 |
5-33 |
12 |
|
T03 |
2.7 |
429 x 171 |
451 x 193 |
56 |
5-33 |
12 |
|
T04 |
3.8 |
627 x 171 |
649 x 193 |
56 |
5-33 |
10 |
|
T05 |
3.4 |
429 x 244 |
451 x 266 |
56 |
5-33 |
15 |
|
T32 |
2.0 |
375 x175 |
397 x 197 |
87.50 |
5-33 |
10 |
|
T50 |
3.0 |
347 x 251 |
369 x 273 |
56 |
5-33 |
10 |
Closing system
Using a sole ergonomic handle, the portlight can be opened with one hand. The handle also evens out the pressure all around the seal and thus guarantees an excellent water-tightness.
Watertightness
The Opal portlights feature a lip seal system, ensuring perfect water tightness. The special shape of the seal allows it to be mounted in the frame, without any glue.
- Supplied as standard with a grey acrylic glass
- Mounting on a flat surface with a ± 0.5 mm tolerance
- Approved in CE areas IIb, III and IV
