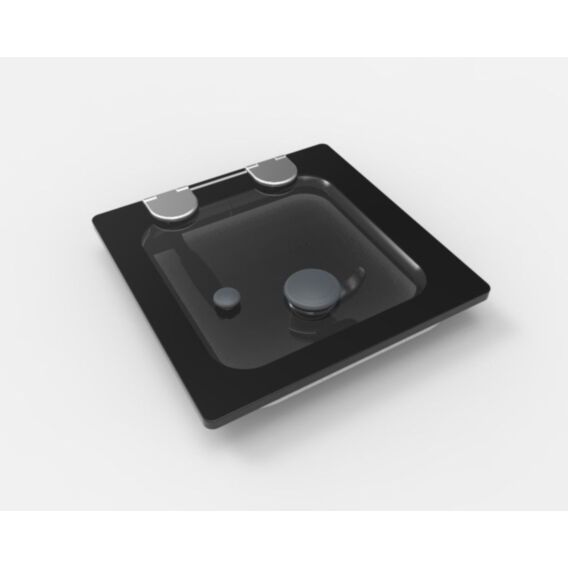

Opal Flush-T10
Forerunner of the Flush hatch on Mari-Cha IV, Goiot introduces its range of Flush hatches, designed for production boats.
The Flush model shows its relationship to the Opal range by combining a thick aluminium profile frame, telescopic stays and ergonomic handles.
Innovation is at the service of aesthetics: the use of a thick and rigid acrylic (15 mm), mounted on specific stainless steel hinges, makes it possible to avoid any opening frames and creates a new harmony on the deck.
- Supplied as standard with a grey acrylic
- Stainless steel hinges
- Mounting on a flat surface with a ± 0.5 mm tolerance
- Approved in CE areas IIa, III and IV
|
Size |
Weight (Kg) |
Cut-out dimensions (mm) |
Overall dimensions (mm) |
Cut-out radius (mm) |
Acrylic thickness (mm) |
Lid height (mm) |
Frame flange (mm) |
|
T10 |
5.6 |
260 x 260 |
330 x 330 |
42.5 |
15 |
31 |
15 |
|
T20 |
6.0 |
347 x 202 |
417 x 272 |
42.5 |
15 |
31 |
15 |
|
T30 |
7.0 |
467 x 327 |
527 x 397 |
42.5 |
15 |
31 |
15 |
|
T44 |
7.6 |
442 x 442 |
512 x 512 |
42.5 |
15 |
31 |
15 |
|
T54 |
7.6 |
507 x 382 |
577 x 462 |
42.5 |
15 |
31 |
15 |
|
T60 |
9.0 |
507 x 507 |
577 x 577 |
42.5 |
15 |
31 |
15 |
|
T70 |
11.0 |
627 x 627 |
697 x 697 |
42.5 |
15 |
31 |
15 |
Opening and closing system
Flush stainless steel handles with winch print allow opening from the outside.
The ergonomic shape of the handles ensures comfortable space for excellent prehension. They feature a lock catch which prevents breaking in from outside.
All models are equipped with adjustable stay up to 130°.
Options:
- special dimensions
- aluminium sheet
- gas springs
- lock
- ventilator
