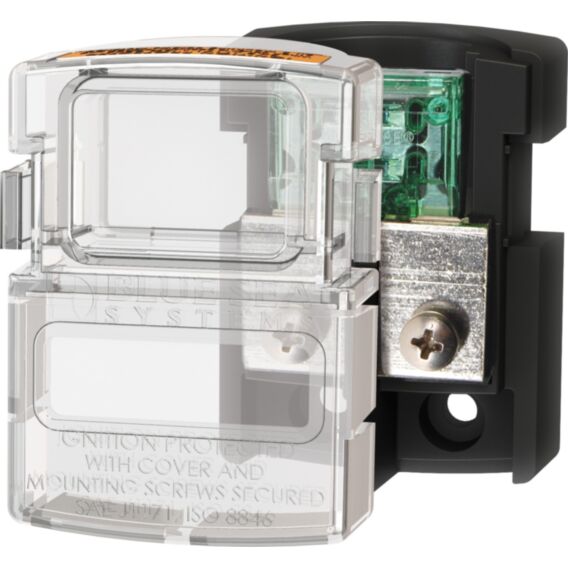

MAXI Fuse Block
Blue Sea Systems
SKU
BSS5006100
- Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
- Cover breakouts allow wires from sides or bottom
- Terminal screws compress fuse blades within blocks for low resistance connections
- Ignition Protected
- Label recess accepts large format label
- Fuses sold separately
£35.03
RRP
Ex. VAT
| Specifications | |
|---|---|
| Maximum Amperage* | 80A |
| Maximum Voltage | 32V DC |
| Mounting | #10 Screws |
| Screw Terminal Torque | 25 in-lb (2.82 Nm) |
| Wire Size | 14 - 4 AWG |
| Weight | 0.25lb (0.11 kg) |
*Maximum amperage ratings are dependent on the use of appropriately sized fuses and wires for a given application
