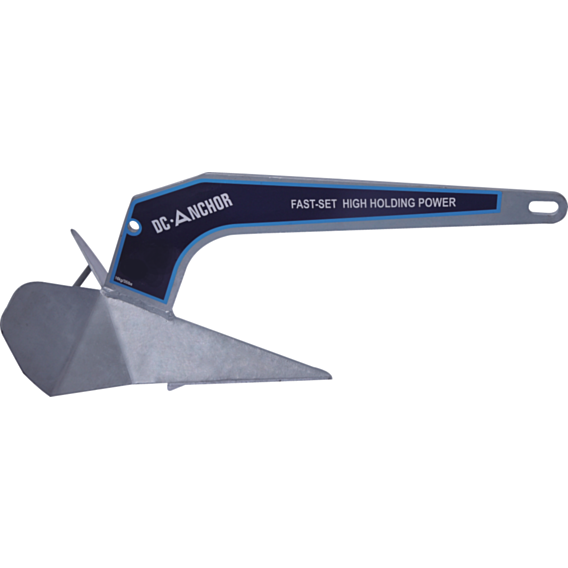

Lloyd's Register Approved DC Anchor - Galvanised
Waveline
SKU
Lloyd's Register Approved DC Anchor - Galvanised
- High holding power
- Fast Setting
- Hot Dip Galvanised
- Self Launching
- Lloyd’s Register Approved
- Smooth setting into the bow roller
- Fits into the same bow rollers as Delta™ Anchors
As low as
£43.46
| PN | Weight | A | B | C | D | E | F | G | H |
| WL-0103-1704 | 4kg | 514 mm | 303 mm | 230 mm | 16 mm | 35 mm | 8 ± 0,35 mm | 32 mm | 217 mm |
| WL-0103-1706 | 6kg | 593 mm | 350 mm | 265 mm | 16 mm | 35 mm | 10 ± 0,4 mm | 32 mm | 254 mm |
| WL-0103-1710 | 10kg | 695 mm | 410 mm | 310 mm | 19 mm | 42 mm | 12, 1 - 13,5mm | 38 mm | 293 mm |
| WL-0103-1716 | 16kg | 812 mm | 482 mm | 351 mm | 19 mm | 42 mm | 12,1 - 13,5 mm | 44 mm | 339 mm |
| WL-0103-1720 | 20kg | 877 mm | 518 mm | 392 mm | 24 mm | 48 mm | 16 ± 0,4 mm | 48 mm | 370 mm |
| WL-0103-1725 | 25kg | 945 mm | 558 mm | 415 mm | 24 mm | 48 mm | 16 ± 0,4 mm | 52 mm | 397 mm |
