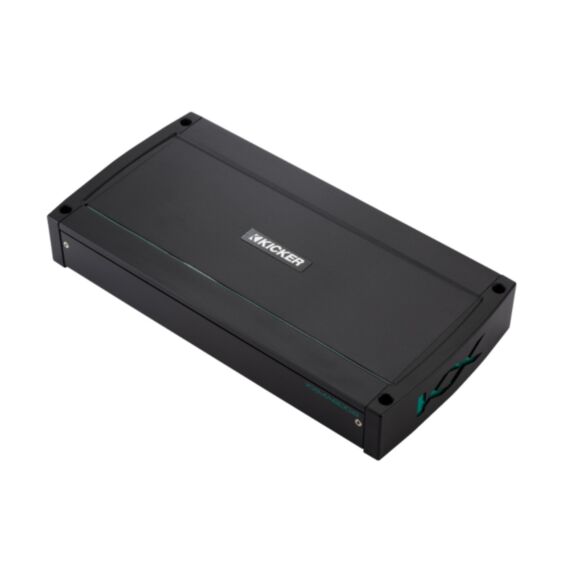

KXM 800w 8 Channel Class D Full-Range Amplifier
- Class D Power Plant
- Gain Control With "Optimal Input" Indicator
- FIT2 (Fail-Safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ+ 18dB Variable Bass Boost
- ABYC/NMMA Compliant Power Terminals
- Conformal-Coated Circuit Boards
- Easy Access to Settings behind Gasket-Sealed Cover Panel
- Black Anodized Aluminum Chassis
- Top-mounted teal LED Light Pipe
- Stainless Steel Mounting Hardware Included
This KXM amplifier delivers as much as 100 watts per channel (8 channels driven), or 200 watts into four sets of bridged channels.
The KICKER KXM eight-channel amp delivers power and performance anywhere you cruise.
This KXM eight-channel amplifier gives you flexibility in the name of the game, and with eight powerful channels to play with, your boat will be the winner!
The KXM 800-watt eight-channel amplifier is one of the most flexible marine power plants available today.
Using powerful Class D technology, this KickEQ+ delivers as much as an 18dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.
SPECIFICATION
RMS Power
- 14.4V 4 Ohm = 1% THD+N : 50 W x 8
- 14.4V 2 Ohm = 1% THD+N : 100 W x 8
- 14.4V 4 Ohm bridged = 1% THD+N : 200 W x 4
- Length - 14 3/4" (37.4 cm)
- Height - 2 1/8" (5.5 cm)
- Width - 8 5/16" (21 cm)
- Frequency Response - 10-20K Hz (+/- 1 dB)
- Signal-to-Noise Ratio - >95dB A-weighted, re: rated power
- Input Sensitivity - 250mV-10V
- Crossover - Selectable Electronic
- KickEQ Boost - variable to 0-18dB, centered at 40Hz
