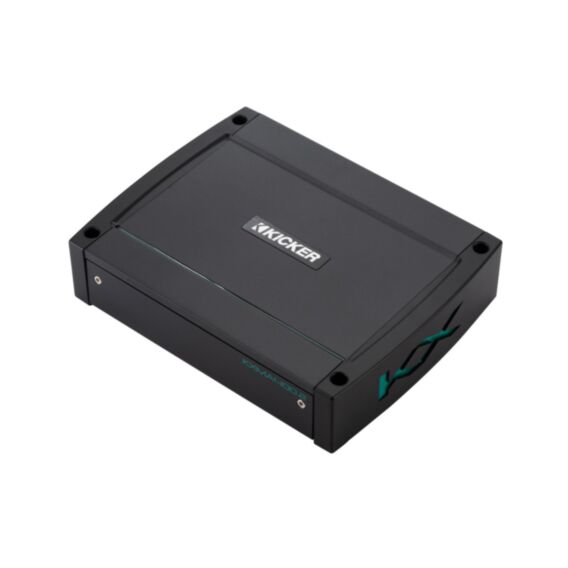

KXM 400w 2 Channel Class D Full-Range Amplifier
- Class D Power Plant
- Gain Control With "Optimal Input" Indicator
- FIT2 (Fail-Safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ+ 18dB Variable Bass Boost
- ABYC/NMMA Compliant Power Terminals
- Conformal-Coated Circuit Boards
- Easy Access to Settings behind Gasket-Sealed Cover Panel
- Black Anodized Aluminum Chassis
- Top-Mounted Teal LED Light Pipe
- Stainless Steel Mounting Hardware Included
This KXM amplifier delivers as much as 200 watts per channel (stereo) or 400 watts into one channel (mono).
KXM Amplifiers are built for fun, no matter where you go. Power, speaker and input connections are gasket-sealed, as is the control cover hiding the settings, creating a water-resistant barrier to key components.
KickEQ+ delivers as much as an 18dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running a new signal cable to the radio.
SPECIFICATION
RMS Power
- 14.4V 4 Ohm = 1% THD+N : 100 W x 2
- 14.4V 2 Ohm = 1% THD+N : 200 W x 2
- 14.4V 4 Ohm bridged = 1% THD+N : 400 W x 1
- Length - 9 9/16" (24.4 cm)
- Height - 2 1/8" (5.5 cm)
- Width - 8 5/16" (21 cm)
- Frequency Response - 10-20K Hz (+/- 1 dB)
- Signal-to-Noise Ratio - >95dB A-weighted, re: rated power
- Input Sensitivity - 250mV-10V
- Crossover - Selectable Electronic
- KickEQ Boost - variable to 0-18dB, centered at 40Hz
