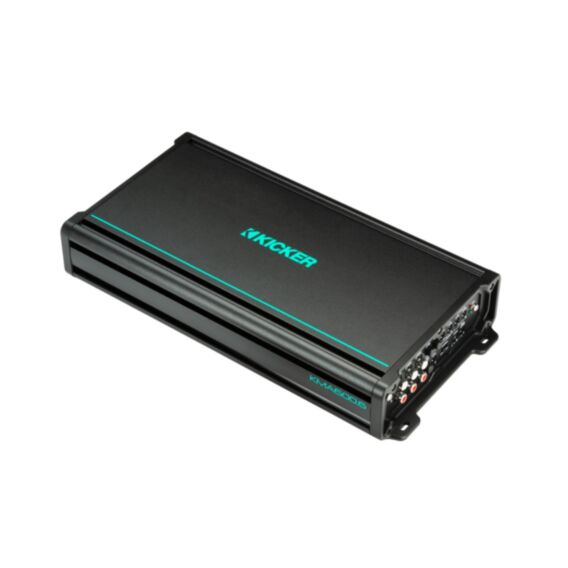

KMA Marine 600w 6 Channel Class D Full-Range Amplifier
- Ultra-Efficient Class D Design
- 750 Watts of Dynamic Power
- Three Zones of Control
- Six-Channel Amplifier with Bridging Capability
- Conformal-Coated Circuit Board
- Variable 12dB Crossover
- KickEQ™ Variable 6dB Bass Boost
- Real Marine™ ABYC/NMMA-Compliant Power Connections
- 316L Stainless-Steel Hardware Included
This KM amplifier delivers 100 watts into six channels, or 200 watts bridged into three channels. See below for more details.
Big sound meets big value. Use this flexible KM Six-Channel Marine Amplifier to power your system easily and pump up the sound like only KICKER can!
Using a Class-D power plant, this amp features a variable bass boost with KickEQ™, giving you as much as 6dB of extra bump on the Amp 3 channels. Powering as many as 12 speakers, this amplifier makes your entire boat sound like a floating concert! A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.
SPECIFICATION
RMS Power
- 14.4V 2 Ohm stereo = 1% THD+N : 100 W x 6
- 14.4V 4 Ohm stereo = 1% THD+N : 50 W x 6
- 14.4V 4 Ohm stereo = 1% THD+N : 200 W x 3
- Height - 2 5/16" (5.9 cm)
- Width - 7 1/8" (18.0 cm)
- Depth - 13 15/16" (35.3 cm)
- Frequency Response - 10-20 Hz (+/- 1 dB)
- Signal-to-Noise Ratio - >95dB A-weighted, re: rated power
- Input Sensitivity Low Level - 125mV-5V
- Input Sensitivity High Level - 250mV-10V
- Active Crossover Amp 1&2 - HP Only, 12dB/Octave, variable 0-200Hz
- Active Crossover Amp 3 - OFF/HP/LP, 12dB/Octave, variable, 50-200Hz
- Subsonic Filter Amp 3 - 24dB fixed @ 25Hz
- KickEQ Bass Boost Amp 3 - Variable 0-6dB centred at 40 Hz
