IP68 - Specified Pin Variant Low-Flange and Cap Kit. Screw Connection. Supplied with Stainless Steel Fixing Screws.

Index Marine
Index Marine
SKU
IP68 - Specified Pin Variant Low-Flange and Cap Kit

Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive. Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism the Bulgin Standard Buccaneer family of connectors is ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

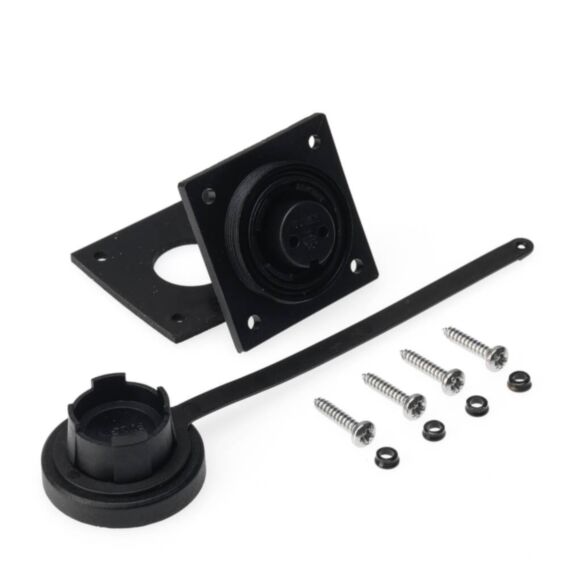

The kit consists of:

1 x low profile flange mount connector

1 x sealing cap

The low-profile flange mount socket provides a waterproof and dustproof connection when mated with the appropriate pin flex connector. The 3 pin socket version has a leading earth contact. The flange mount is screw fixed with supplied with a sealing gasket and screw sealing grommets. Both plug and mount socket connectors are supplied with a sealing cap to maintain IP68 rating when unmated.

Low-profile flange mount and flex connector are available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.

As low as £19.95
Where to buy
Low-Profile Flange Mount Socket

Flange H 44.5 W 44.5
Connector L 2 pin 43 mm, 3 pin 38 mm, 4 pin 31mm, 6 pin 31 mm, 7 pin 38 mm, 9 pin 26 mm
Sealing Cap Dimensions

Socket cap L 20.5 mm x Dia 38 mm
Pin Option

2 pin, 3 pin, 4 pin, 6 pin, 7 pin, 9 pin.
IP Rating

IP68
Max Cable Size

3.5 mm – 9 mm
Material

Polyurethane
Screw Sets

A4 Stainless Steel
Approvals

UL (E93288 and E337507), CSA (LR80968-30) and VDE (40023148) approvals
Packaging

Re-cycled materials
