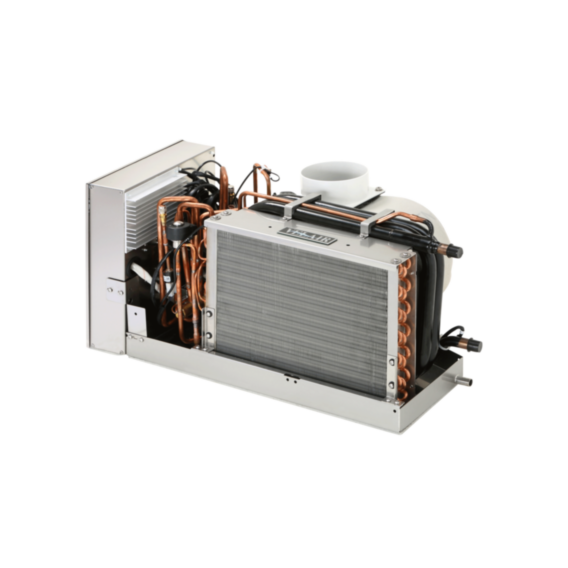

i16 VSD SMART – VSD Inverter Air Conditioning Unit

Velair

SKU

24832JW

Thermostat with WiFi included
Heat pump reverse cycle operation
0,5°C temperature fluctuation
Compressor noise and vibrations are almost zero
No current peaks during start-up
Overall reduction in electricity consumption
Constant Flow technology fan
Twin Rotary compressors
A constant temperature of the airflow
Increase in component lifetime
New wall touch display
WIFI: remote control via smartphone
Designed and manufactured in Italy

£3,583.32

RRP Ex. VAT

Details

Downloads

Velair i16 VSD SMART Self-contained-VSD air conditioner provides the best of the existing technology: compressor with brushless DC motor and inverter that constantly controls speed and delivered cooling power (Variable Speed Drive); reverse blade brushless fan; electronic expansion valve; R32 refrigerant.

The compressor continuously changes its running speed depending on the ambient and set temperature. The compressor operates at maximum power to cool rapidly the cabins, but reaching the set temperature reduces the power and electric consumption. In this way, it maintains the optimal comfort level with minimum consumption. The inverter works between 20 and 100 Hz.

Self-contained-VSD VELAIR units meet EMC 2004/108/EC directives.

Inverter VSD - Variable Speed Drive	YES
Voltage/Phase/Cycle	1 PH 230V - 50/60 HZ; 1 PH 115V - 50/60 HZ
Cooling capacity range	6.000 - 16.000 BTU/H
Heat pump	YES
Maximum input power cooling	0,93 KW / 4,1 A
Input power ECO mode	0,31 KW / 1,35 A
Min seawater flow	15 L/MIN
Maximum air flow	550 M3/H
Air exit duct (for max capacity)	1 X Ø 125 MM - 1 X Ø 4.9”
Min. opening for return air grill	600 CM2
Min. opening for supply air grill	300 CM2
Refrigerant	R32
Control panel cable length	8 M
Width - including electrical box	650 MM - 25.6”
Height	330 MM - 13”
Depth	355 MM - 14”
Weight	28 KG - 61.7 LBS
Working limits: SW summer mode	> +5°C/+41°F
Working limits: SW winter mode	< +40°C/+104°F

	COMPACT i16 VSD SMART
Voltage/Phase/Cycle	1 PH 230V - 50/60 Hz; 1 PH 150V - 50/60 Hz
Cooling capacity	6.000 - 16.000 BTU/h
Maximum input power cooling	4.1 A @230V; 8.5 A @115V
Protection	10 A @230V/115V
Wire size (minimum)	2,5 mm2 (230V); 4 mm2 (115V);
Maximum airflow	550 m3/h
Min. opening for return air grill	600 cm2
Min. opening for supply air grill	300 cm2
Min. seawater flow	15 l/min
Dimensions mm (") LxHxP (including the electrical box)	650x330x355(25.6x13x14)
Weight kg (lbs)	28 (61.7)
