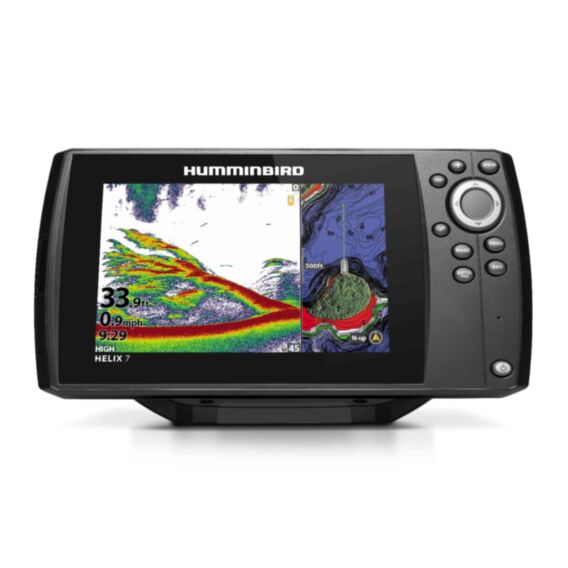

HELIX 7 Fish Finder & GPS Chart Plotter CHIRP 2D G4
Humminbird
SKU
411600-1
The HELIX 7 CHIRP GPS G3 fishfinder features Dual Spectrum CHIRP Sonar, AutoChart Live, GPS and Humminbird Basemap built-in. The 7", the ultra-wide display gives you ample room to view the many pre-loaded split screen view options.
£541.66
RRP
Ex. VAT
- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
- Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
- LakeMaster Compatible: Upgrade to the unrivalled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count
- Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
- Includes transducer and mounting hardware, power cable, gimbal mounting bracket.
- 1-Year Limited Warranty
| Item Number | 411600-1 |
| Series | HELIX |
| Display Size - Diagonal | 7" |
| Display Pixel Matrix | 1024x600 |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 20°, 42° & 60° @ -10dB |
| Sonar-Optional | 50 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported | Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported | 50/83/200 kHz |
| Depth-Sonar | 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) |
| Interface | Keypad Control |
| Features | Built-In GPS, Built-In Mapping, Dual Spectrum CHIRP |
| Memory Card Slot | Single Micro SD |
| Compatible With | AIS, AutoPilot |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen SnapShot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54" W x 5.8" H x 3.68" D |
| Mount-Optional Size | 10.54" W x 5.44" H x 1.13" D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | No |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Size | 5" - 7" |
| Speed | Included |
| Temperature | Built-In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| Transducer Included | XNT 9 HW T |
| HDMI Compatible | No |
| MEGA Live Compatibility | No |
