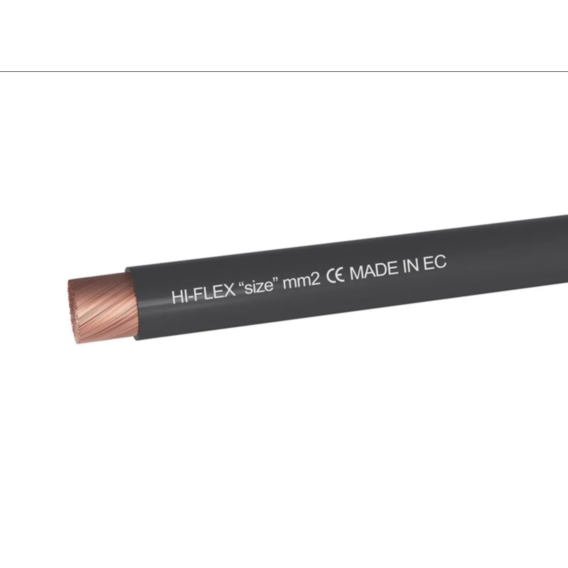

Flexible battery / starter cable
Waveline
SKU
Flexible battery / starter cable
25m lengths. Single cables with high flexible conductors, “soft” PVC insulated.
Flame retardant: according to IEC60332-1 ÷ CEI EN 50265
Minimum bending radius: six times the outer diameter.
RoHS compliant.
Operating temperature:
5°C ÷ +70°C (mobile use)
-30°C ÷ +70°C (stationary use)
Max. temperature in case of short circuit:
160° C on the conductor
Rated voltage Uo/U:
450/750 V
As low as
£68.61
| Nominal size mm2 | Max diameter of wires mm | Outer diameter mm | Cable weight Kg/Km |
| 1 X 10 | 0.21 | 7.3 | 130 |
| 1 X 16 | 0.31 | 8.7 | 200 |
| 1 X 25 | 0.31 | 9.2 | 250 |
| 1 X 35 | 0.31 | 10.5 | 300 |
| 1 X 40 | 0.31 | 12.6 | 360 |
| 1 X 50 | 0.31 | 13.8 | 410 |
| 1 X 60 | 0.31 | 14.8 | 460 |
| 1 X 70 | 0.31 | 15.9 | 565 |
| 1 X 95 | 0.31 | 18.2 | 650 |
| 1 X 120 | 0.31 | 20.1 | 780 |
