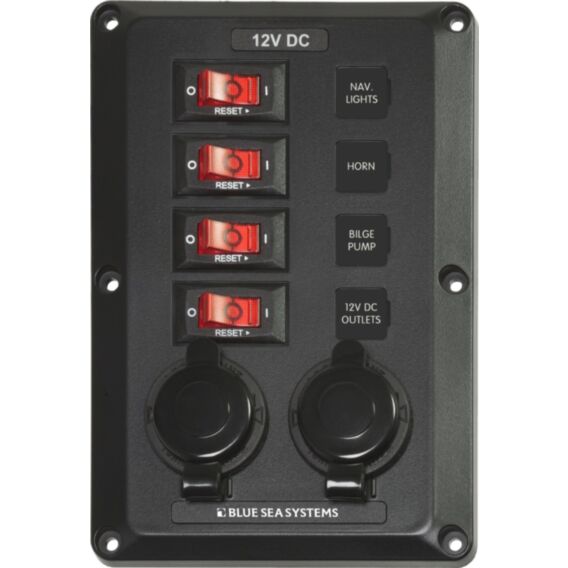

4 Position with 12V Sockets, BelowDeck Circuit Breaker Panel

Blue Sea Systems

SKU

DURABLE
Moulded panel frame will stand up to UV and salt air
EASY
Low profile makes it easy to install in tight spaces
SIMPLE
Fast-on circuit breaker connectors make it quick to wire
CONVENIENT
Red “ON” indicating LEDs for safe operation in low light conditions

4 Carling Technologies™ 15A circuit breakers with 2 sockets
Illuminated ON indication
Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
A two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
A set of 15 square format circuit labels are included and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Stainless steel #6 x 5/8″ mounting screws included

As low as £48.80

Details

Downloads

Specifications
Positions	4
Nominal Voltage	12V DC
Maximum Amperage*	45A
Terminal Type	1/4″ Male quick connect
Hardware	Stainless Steel #6 x 5/8″ mounting screws
Ring Terminal Size	M5 (#10)
Height	6.5in (165.1 mm)
Width	4.5in (114.3 mm)
Depth	1.75in (44.45 mm)
