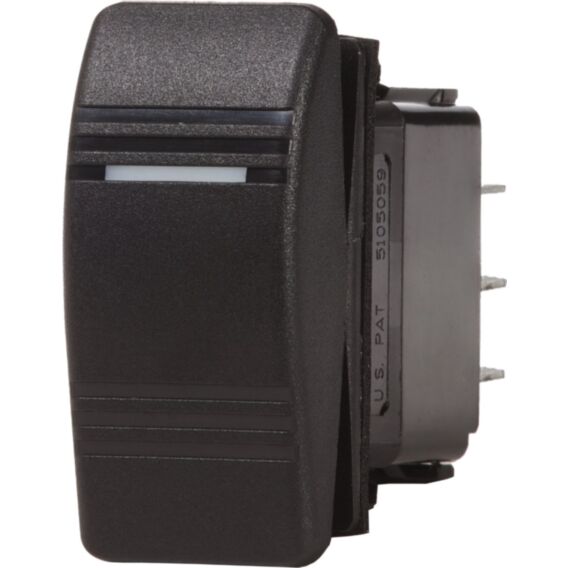

Contura Switch SPDT Black - (ON)-OFF-ON
Blue Sea Systems
SKU
BSS8284
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water-resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
£18.53
RRP
Ex. VAT
| Specifications | |
|---|---|
| Action* | (ON)-OFF-ON |
| Pole / Throw | SPDT |
| Actuator Colour | Black - Contura III |
| Common Applications | bilge pumps |
| Maximum Amperage** | 20A @ 12V 15A @ 24V |
| Amperage Operating Current | 18mA (LED) |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Actuator Position to Light LED | ON |
| Embedded LEDs | 1 |
| Lighting | LED rated 100,000 hours half-life |
| Seals | Internal and external gasket panel seal |
| Weight | 0.09Lb (0.04 Kg) |
| Weight | 0.09lb (0.04 kg) |
*() = Momentary ON
**Maximum amperage ratings are dependent on the use of appropriately sized fused and wire for a given application
