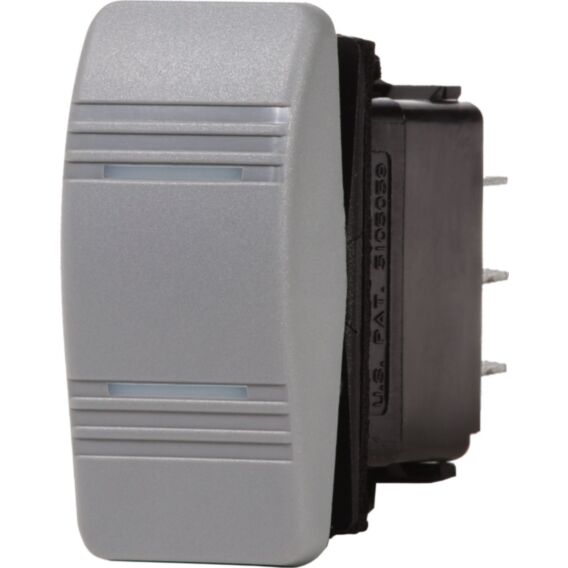

Contura Switch DPDT Gray - ON-ON
Blue Sea Systems
SKU
BSS8275
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water-resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
£22.42
RRP
Ex. VAT
| Specifications | |
|---|---|
| Action* | ON-ON |
| Pole / Throw | DPDT |
| Actuator Colour | Gray - Contura III |
| Common Applications | switching between shunts or current transformers with one meter |
| Maximum Amperage** | 20A @ 12V 15A @ 24V |
| Amperage Operating Current | 18mA (LED) |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Actuator Position to Light LED | ON |
| Embedded LEDs | 2 |
| Lighting | LED rated 100,000 hours half-life |
| Seals | Internal and external gasket panel seal |
| Weight | 0.09Lb (0.04 Kg) |
| Weight | 0.25lb (0.11 kg) |
*() = Momentary ON
**Maximum amperage ratings are dependent on the use of appropriately sized fused and wire for a given application
