Compact Air Conditioning Unit for Boat – Compact 7 (115V)

Velair

SKU

20379UU

Surface Control Panel included
Unit extremely compact in dimensions and lightweight
Brushless fan with high efficiency and low noise
Max electrical power consumption 660 W (in cooling)
New wall touch display included
Heat pump reverse cycle operation for heating the environment in winter

£2,499.99

RRP Ex. VAT

Details

Downloads

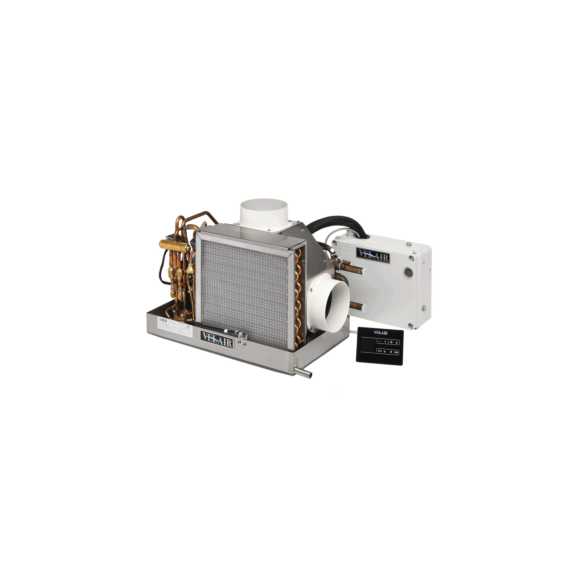

In order to have a solution even when spaces are minimal, VELAIR introduces Compact 7, the super-compact and self-contained air conditioning unit that is just 43cm in length and 26cm in width and develops 7000 BTU/h of cooling power.
7000 BTU model is built with a stainless steel tray and fan body, with the possibility to have up to 3 air outlets.

Boat air conditioning is easy to install:
With its compact dimensions and low weight, the air conditioning unit Compact 7 can be installed on all types of boats.
The Compact 7 can be installed with 2 or 3 air outputs, 100 mm diameter, without the need to use any T or Y additional dividers

Cooling capacity	7000 BTU/H
Power supply Voltage	230 V - 50 HZ (ALSO AVAILABLE IN 115V - 60 HZ)
Cooling power consumption	3,0 A
Protection	10 A
Wire size (minimum)	2,5 MM2
Maximum airflow	350 M3/H
Flange diameter	2X 100 MM
Maximum opening for return air grill	360 CM2
Minimum opening for supply air grill (rec)	150 CM2
Seawater minimum flow rate	8 L/MIN
Control panel	WALL-MOUNTED TOUCH CONTROL
Wifi remote control via smartphone	YES
Dimensions mm (") WxHxD	433X280X260 (17.1X11X10.2)
Weight kg (lbs)	23 (50.7)

Modello - Model	COMPACT 7
SKU	20379UU
Width	433 mm - 17”
Height	280 mm - 11”
Depth	260 mm - 10.2”
Weight	23 kg - 50.7 lbs
Voltage/Phase/Cycle	115 V/1ph/60Hz
Cooling capacity	7.000 BTU
Maximum input power cooling	0,7 Kw
Maximum current	6,2 A
Starting	24 A
Min. seawater flow	8 l/min
Air exit duct (for max capacity)	2 x Ø 100mm - 2 x Ø 4”
Refrigerant	R410A
Control panel cable length	8 m
