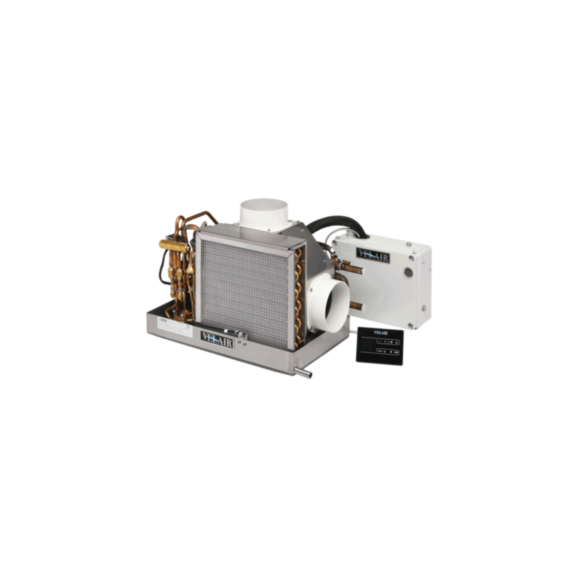

Compact Air Conditioning Unit for Boat – Compact 7
- Surface Control Panel included
- Unit extremely compact in dimensions and lightweight
- Brushless fan with high efficiency and low noise
- Max electrical power consumption 660 W (in cooling)
- New wall touch display included
- Heat pump reverse cycle operation for heating the environment in winter
In order to have a solution even when spaces are minimal, VELAIR introduces Compact 7, the super-compact and self-contained air conditioning unit that is just 43cm in length and 26cm in width and develops 7000 BTU/h of cooling power.
7000 BTU model is built with a stainless steel tray and fan body, with the possibility to have up to 3 air outlets.
Boat air conditioning is easy to install:
With its compact dimensions and low weight, the air conditioning unit Compact 7 can be installed on all types of boats.
The Compact 7 can be installed with 2 or 3 air outputs, 100 mm diameter, without the need to use any T or Y additional dividers
|
Cooling capacity |
7000 BTU/H |
|
Power supply Voltage |
230 V - 50 HZ (ALSO AVAILABLE IN 115V - 60 HZ) |
|
Cooling power consumption |
3,0 A |
|
Protection |
10 A |
|
Wire size (minimum) |
2,5 MM2 |
|
Maximum airflow |
350 M3/H |
|
Flange diameter |
2X 100 MM |
|
Maximum opening for return air grill |
360 CM2 |
|
Minimum opening for supply air grill (rec) |
150 CM2 |
|
Seawater minimum flow rate |
8 L/MIN |
|
Control panel |
WALL-MOUNTED TOUCH CONTROL |
|
Wifi remote control via smartphone |
YES |
|
Dimensions mm (") WxHxD |
433X280X260 (17.1X11X10.2) |
|
Weight kg (lbs) |
23 (50.7) |
|
|
COMPACT 7 |
|
SKU |
20379UW |
|
Cooling capacity |
7000 BTU/h |
|
Power supply Voltage |
230 v - 50 Hz ; 115V - 60 Hz |
|
Cooling power consumption |
3,0 A |
|
Protection |
10 A |
|
Wire size (minimum) |
2,5 mm2 |
|
Maximum air flow |
350 m3/h |
|
Flange diameter |
2x 100 mm |
|
Maximum opening for return air grill |
360 cm2 |
|
Minimum opening for supply air grill (rec) |
150 cm2 |
|
Seawater minimum flow rate |
8 l/min |
|
Dimensions mm (") WxHxD |
433x280x260 (17.1x11x10.2) |
|
Weight kg (lbs) |
23 (50.7) |
