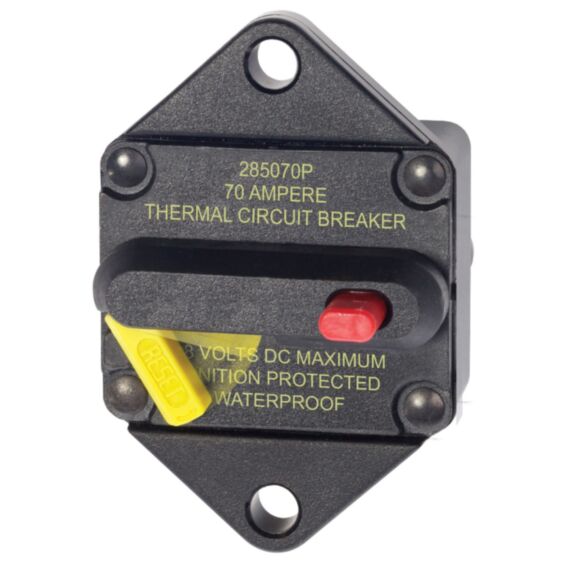

Circuit Breaker, Bus 285 Panel 70A
Blue Sea Systems
SKU
BSS7085
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
£63.32
RRP
Ex. VAT
| Specifications | |
|---|---|
| Amperage | 70A |
| Maximum Voltage | 48V DC |
| Mounting | Panel Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Interrupt Capacity* | 3000A @ 48V** |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Terminal Stud | M6 (accepts 1/4" Ring Terminal) |
| Weight | 0.50lb (0.23 kg) |
*The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage
**Achieved using SAE J1625
