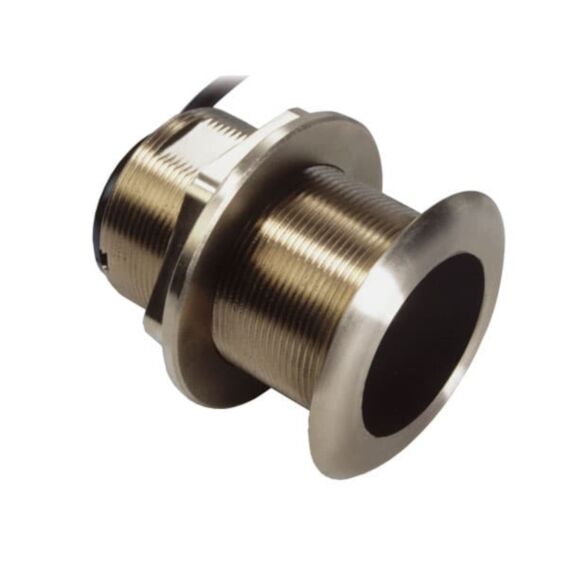

B60 DT Transducer Thru Hull 12°/20° Tilt with 2m Cable
Airmar
SKU
B60 DT Transducer Thru Hull 12°/20° Tilt with 2m Cable
The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. The transducer is installed almost flush to the hull and the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more accurate depth readings.
Available in two Tilted Element models:
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Fixed 20° tilted version for 16° to 24° hull deadrise
As low as
£323.45
- Depth and water temperature
- 600 W
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for centre-console or trailered boats
- A low-profile protrusion extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing
Specifications
- Weight: 1.4 kg (3 lb.)
- Recommended Boat Length: Up to 8 m (25')
- Hull Material: Fiberglass or wood
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Hole Diameter: 60 mm (2-3/8")
