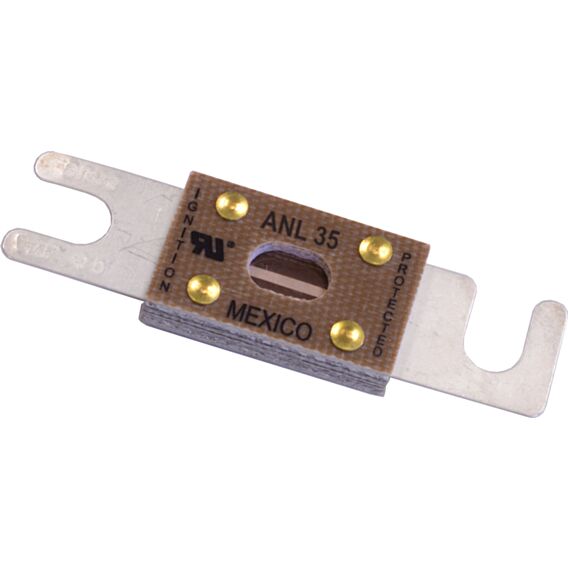

ANL Fuse - 35 Amp

Blue Sea Systems
SKU
BSS5164
  • Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
  • Silver-plated connector blades for corrosion resistance
  • Visible indication of blown condition
  • 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
  • For use with Blue Sea Systems ANL Fuse Blocks
£24.60
RRP Ex. VAT
Specifications
Amperage 35A
Ignition Protected* Yes
Maximum Voltage 32V DC
Interrupt Capacity** 6000A @ 32V DC
Weight 0.07lb (0.03 kg)

*Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests that a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.

**The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
