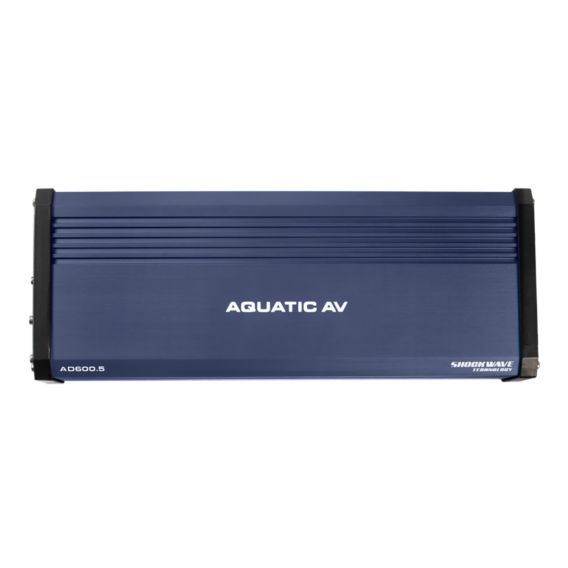

AD600.5 5/4/3 channel marine amplifier
Fully waterproof 5 channel marine amplifier with Shockwave Technology™.
Shockwave Technology™ brings together outstanding sound quality, high performance characteristics and unprecedented reliability into a 5/4/3 channel marine amplifier.
- 5 Channel Marine Amplifier
- 600W max power
- IP65 Rated, for use in any environment (dry, wet, muddy, damp etc)
- 5, 4 or 3 output channels
- 5x RCA inputs
- Mono, stereo or Bridge modes
- Class D digital amplifier
- Electronic Crossover
- Variable gain control
- Bass Boost
- LED indicator
- Remote turn-on
- Turn-On/Off Muting Circuit (Soft Mute)
Product Description
Fully waterproof 5 channel marine amplifier with Shockwave Technology™.
Shockwave Technology™ brings together outstanding sound quality, high performance characteristics and unprecedented reliability into a 4/3/2 channel marine amplifier.
Waterproof marine grade – protected against water and dust with an Ingress Protection rating of IP65 means you can literally hose down our Shockwave Technology™ marine amplifiers, thanks to a number of unique features exclusive to Aquatic AV (patents pending).
The 5 channel marine amplifier features conformal coated circuit boards protect the smallest components from any humidity or atmospheric moisture, while custom molded grommets around cable extrusions and gaskets between all meeting points eliminate any chance of water or dust intrusion.
Designed to support the widest variety of applications, Shockwave Technology™ marine amplifiers operate both 4ohm and 2ohm speaker configurations from RCA input connections. Running 2ohm configurations allows more speakers to be powered and ideal for high background noise environments such as marine or boat applications.
Shockwave Technology™ incorporates Digital IC’s with specially designed low-noise circuitry to produce high-quality, true sound reproduction from any source. The technology used also reduces unwanted EMI (Electromagnetic Interference), which can cause noise in your audio system.
Digital amplifiers are much more efficient than traditional amplifiers; producing less heat, lowering power consumption, reducing strain on batteries and charging systems, and ideal for marine and boat installations.
Shockwave Technology™ is now the only sensible marine amplifier solution for marine or boat applications.
Specifications
| Type: | Class D Digital Amplifier |
| Color: | Blue |
| Output Modes: | Mono, Stereo, Bridge |
| Waterproof: | Yes – IP65 |
| Conformal Coated PCB: | Yes |
| Heavy Duty Waterproof Connectors: | Yes |
| Input Channels: | 5x RCA |
| Speaker Level Input: | 5 channels |
| Output Channels: | 5/4/3 |
| Input Impedance: | 22k (RCA), 470 Ohms (speaker) |
| Output impedance (per channel): | 4 Ohms / 2 Ohms |
| Power Output (max): | 600W |
| Power Output (max) @ 4 Ohms, ≤1% THD: | 4x 50W + 1x 200W |
| Power Output (max) @ 2 Ohms, ≤1% THD: | 4x 75W + 1x 300W |
| Power Output – Bridged @ 4 Ohms, THD ≤1%: | 2x 150W |
| S/N (A-weighted, 1W @ 4 Ohms): | ≥70dB |
| Frequency Response: | 10-20kHz (1CH to 4CH), 10-250Hz (5CH) |
| Channel Separation: | ≥48dB |
| Input Sensitivity (Low Level): | 200mV to 4V |
| Input Sensitivity (High Level): | 600mV to 10V |
| Bridge Mode: | Yes (CH1 – CH4) |
| Bass Boost Adjustment: | Variable 0 to +18dB (Sub CH) |
| Bass Boost Frequency: | 50Hz |
| High Pass Electronic Crossover (12dB/Oct.): | Variable 50 – 250Hz |
| Low Pass Electronic Crossover (12dB/Oct.): | Variable 50 – 250Hz |
| Current Draw: | <2mA standby |
| Gain Control Type: | Variable Gain Control |
| Ground Loop Isolation Input Circuit: | Yes |
| Allowable Battery Voltage | 10.8V – 15.6V |
| Power Fuse: | Yes in Power Cable |
| Dimensions (WxDxH): | 316.5 x 113 x 45.5mm |
| Additional Features: | Nickel plated connectors |
| LED Indicator | |
| Remote Turn-On | |
| Turn-On/Off Muting Circuit (Soft Mute) |
