Performance Tab Kit Without Switch

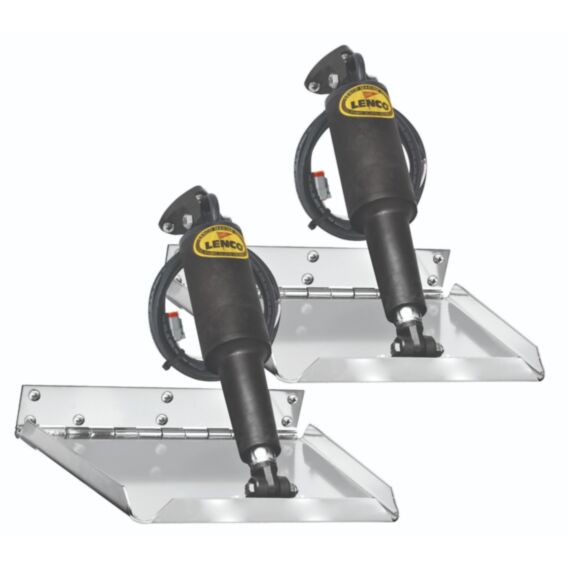

main product photo

Performance Tab Kit Without Switch

Lenco

SKU

Performance Tab Kit Without Switch

Our first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.

As low as £632.17

L" X W": 9" x 9" (22.86 x 22.86 cm)

Boat Length: 13' - 20'
Hinge Height: 2" (5.1 cm)
Min.Transom Height: 13.5" (34.3 cm)
(2) 12-gauge stainless steel Electro-Polished blades
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Lenco owner's/installation manual
Stainless steel mounting hardware

L" X W": 12" x 9" (30.48 x 22.86 cm)

Boat Length: 16' - 26'
Hinge Height: 2" (5.1 cm)
Min.Transom Height: 11" (27.9 cm)
(2) 12-gauge stainless steel Electro-Polished blades
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Lenco owner's/installation manual
Stainless steel mounting hardware

L" X W": 16" x 12" (40.64 x 30.48 cm)

Boat Length: 20' - 36'
Hinge Height: 2" (5.1 cm)
Min.Transom Height: 11" (27.9 cm)
(2) 12-gauge stainless steel Electro-Polished blades
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
(2) 15085-001 upper mounting brackets with gland seal
(2) 50014-001 lower mounting brackets
Lenco owner's/installation manual
Stainless steel mounting hardware
