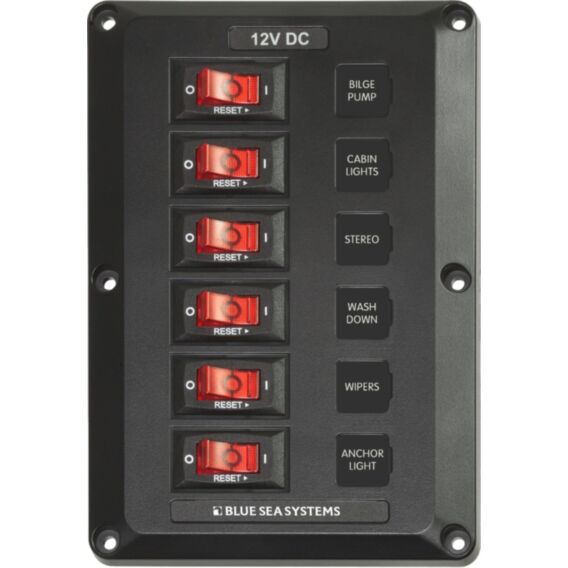

6 Position, BelowDeck Circuit Breaker Panel
Blue Sea Systems
SKU
BSS4352
DURABLE
Molded panel frame will stand up to UV and salt air
EASY
Low profile makes it easy to install in tight spaces
SIMPLE
Fast-on circuit breaker connectors make it quick to wire
CONVENIENT
Red “ON” indicating LEDs for safe operation in low light conditions
- 6 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
- Stainless steel #6 x 5/8″ mounting screws included
£60.22
RRP
Ex. VAT
| Specifications | |
|---|---|
| Positions | 6 |
| Nominal Voltage | 12V DC |
| Maximum Amperage* | 45A |
| Terminal Type | 1/4″ Male quick connect |
| Hardware | Stainless Steel #6 x 5/8″ mounting screws |
| Ring Terminal Size | M5 (#10) |
| Height | 6.5in (165.1 mm) |
| Width | 4.5in (114.3 mm) |
| Depth | 1.75in (44.45 mm) |
*Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application
