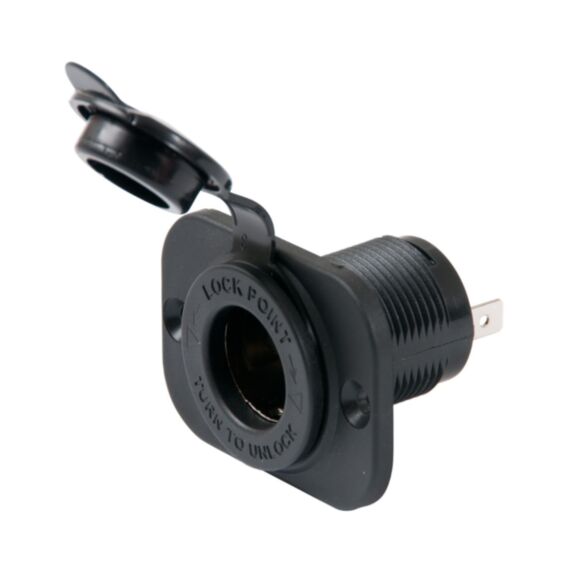

The SeaLink 12 volt family of products are manufactured from corrosion resistant marine grade materials. Exclusive to SeaLink products is a unique interconnecting system that securely locks the plug into the receptacle resulting in a positive and moisture-proof connection. The plug and receptacle feature optimized metal connection points for maximum conductivity.
- Watertight plastic cap seals receptacle when not in use
- Easy to install with supplied mounting plate for front panel installation or locking ring for rear access installation
- Compatible with standard 12V plugs
- Rated at 12 volts, 15 amps
- Terminals: NEMA 0.250" quick connect tabs
- Provisions for front or rear mounting - includes mounting plate (not included with 12VRC.OEM) for front panel installation or locking ring for rear access installation
- Compatible with standard 12 volt plugs, but has reccesses for a matching Marinco Sealink Plug to secure by twist-lock
- Mounting plate diemsions: 1.68"H x 2.34"W
- Requires 1.12" cutout mounting hole
Physical Specs
Each in Package Height (in) * |
1.600 |
Each in Package Width (in) * |
3.500 |
Each in Package Length/Depth (in) * |
3.500 |
Each in Package Weight (oz) * |
2.400 |
Tech Data
DC Voltage |
12 |
Colour |
Black |
OEM Part # |
no |
RoHS Compliant (Restriction of Hazardous Substances Directive) ° |
Contact Compliance |
