110 MRV 2 Speed 2 1/2”-24 Retail

Marinco
Marinco
SKU
M34210

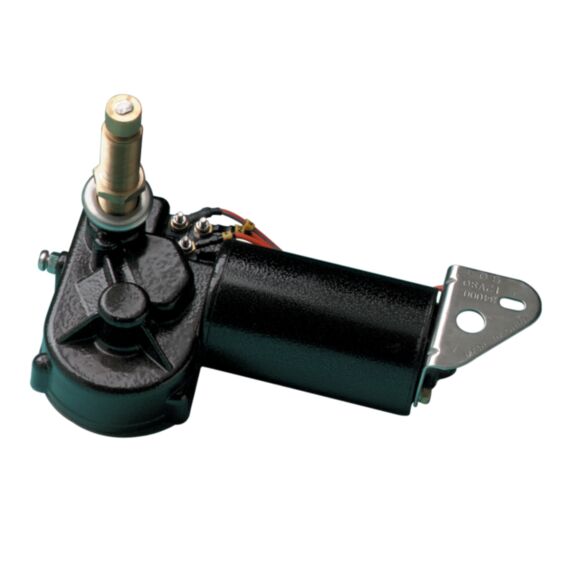

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

  • Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree
  • 0.625" diameter shaft (16 mm)
  • Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
  • Corrosion-resistant casing
  • Heavy-duty motor with right angle drive
  • Two-speed motor, can be operated as one speed
  • Solid brass knurled drive nut with brass and stainless steel drive shaft
  • Adjustable right or left self parking, coast to park
  • Retail version includes 5 amp fuse and holder
  • Stainless steel fasteners and mounting bracket
  • Use with three-position switch (not included)
  • Compact size - 7.625" L x 4" W x 2" D
  • Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
  • Stall current: 11.5-13.0 amps
  • No load current: 0.5-1.2 amps
£211.74
RRP Ex. VAT
Where to buy

Physical Specs

Each in Package Height (in) *

6.000

Each in Package Width (in) *

7.200

Each in Package Length/Depth (in) *

10.000

Each in Package Weight (oz) *

59.200

Tech Data

RoHS Compliant (Restriction of Hazardous Substances Directive) °
