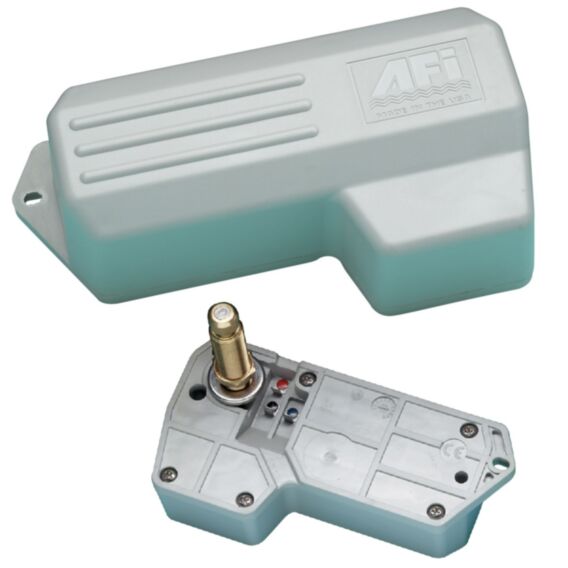

Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 80 Degree

Marinco
Marinco
SKU
M37180

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 deg or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 deg .

  • Factory pre-set sweep of 80 or 110 degrees adjustable to 50, 65, 80 or 110 degrees
  • 0.625" diameter shaft (16 mm)
  • 12 volt heavy-duty motor with anti-rotation drive shaft
  • Knurled drive shaft and solid brass arm drive nut
  • Coast to park with adjustable right or left self parking
  • Retail version includes 5 amp fuse and holder (on/off switch not included)
  • RF shielded circuitry
  • Weight: 1.75 lbs
  • Available in two shaft lengths: 1.5" and 2.5" (includes 0.5" length of knurled arm fitting)
  • Measures approximately 6.625" L x 3.375"W x 2" D
  • Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
  • Stall current: 9.8 to 10.0 amps
  • No load current: 0.8 to 1.2 amps
Warranty
Three Year
£202.43
RRP Ex. VAT
Where to buy

Physical Specs

Each in Package Height (in) *

6.000

Each in Package Width (in) *

6.100

Each in Package Length/Depth (in) *

9.300

Each in Package Weight (oz) *

40.000



Tech Data

OEM Part #

37181

RoHS Compliant (Restriction of Hazardous Substances Directive) °

Contact Compliance
Marinco
